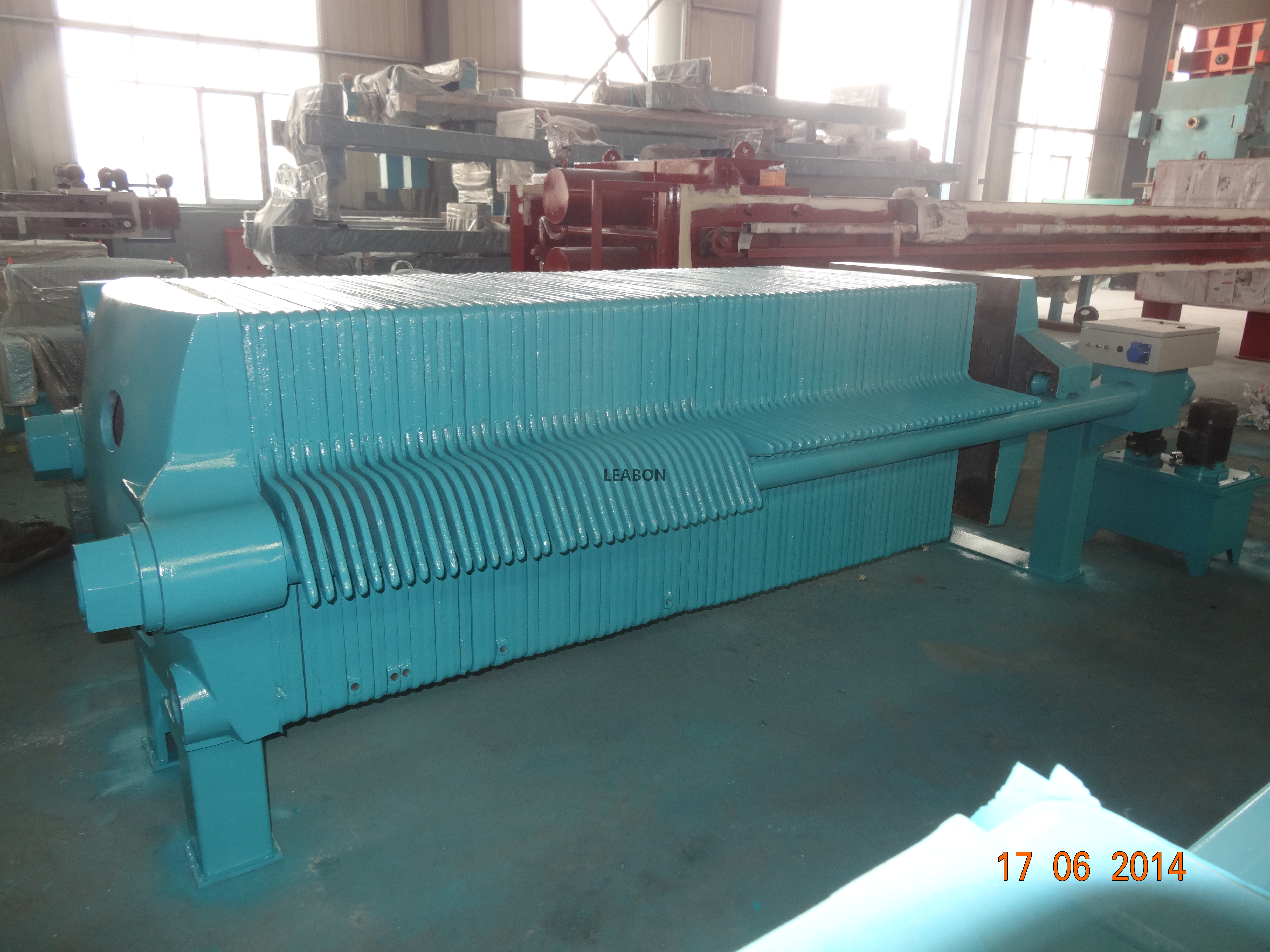

Cast Iron Chamber Filter Press Automatically Filter

Cast iron filter press is precisely made by high quality cast iron and nodular cast iron. It is suitable for filtrating high temperature material with high strength filter plate, high pressure filtrating load, long service life. It can be widely used to separate solide and liquid in petroleum chemical industry, metallurgy, grease and ceramic industries.

Cast Iron Automatic Chamber Filter Press adopts PLC control which can operate all the control for filter press (e.g. compressing filter press, combining and starting liquid collecttion plate,relaxing fliter plate and opening filter plate). And there is telecontrol connector to realize automatic telecontrol.
Quantity:
  • BQ20/630-25

  • LEABON

Specification:
1) Maximum filtration efficiency
2) Longer life
3) Least maintenance
4) Customized specifications
5) Models:320,450,630,800,1000,1250 .
6) Fitration area up to 2000m2 and working pressure up to 1Mpa.
7) Filter plate materials: cast iron.
8) Sreamforms:  internd stream,  external stream,  washable.  non-washable
9) Filter plate pressing modes:  manual screw pressing,  electric mechanic pressing and hydraulic cylinder pressing.
630 type cast iron plate and frame filter press and chamber filter press technical parameter
Specification Filter area (m2) Filter plate size (mm) Filter cake thickness (mm) Filter chamber volume (L) Filter plate number (pcs) Filter plate number (pcs) Filtrating pressure (Mpa) Weight (kg)
BQ20/630-25 20 630*630 25 298 24 25 0.6 3300
BQ30/630-25 30 452 37 38 4500
BQ40/630-25 40 295 49 50 5600
BY20/630-25 20 298 24 25 3700
BY30/630-25 30 452 37 38 5000
BY40/630-25 40 595 49 50 6100
XQ20/630-25 20 248 24
0.8 3400
XQ30/630-25 30 377 37 4700
XQ40/630-25 40 496 49 5900
XY20/630-25 20 248 24
3800
XY30/630-25 30 377 37 5200
XY40/630-25 40 496 49 6400
800铸铁板框_副本
铸铁_副本 (2)
