Hydraulic Ceramics High-Pressure Circular Chamber Filter Press
You are here: Home » Products » Circular Filter Press » Hydraulic Ceramics High-Pressure Circular Chamber Filter Press
Share to:

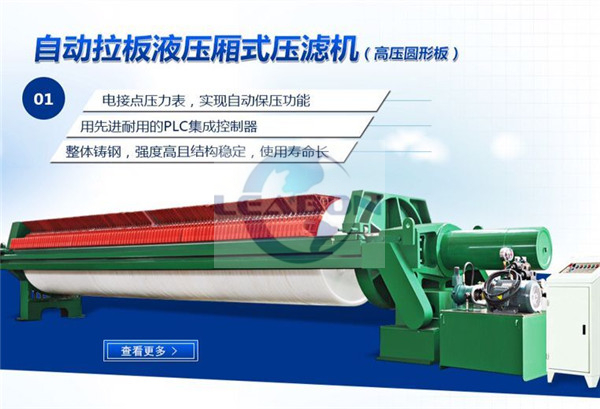

Hydraulic Ceramics High-Pressure Circular Chamber Filter Press

working principle:
1. Working by oil tank. the piston rod will push the movable seat, pressing filter plates to form sealed chambers. It could prevent the slurry from spurting and leakage when sending the slurry with pressure.

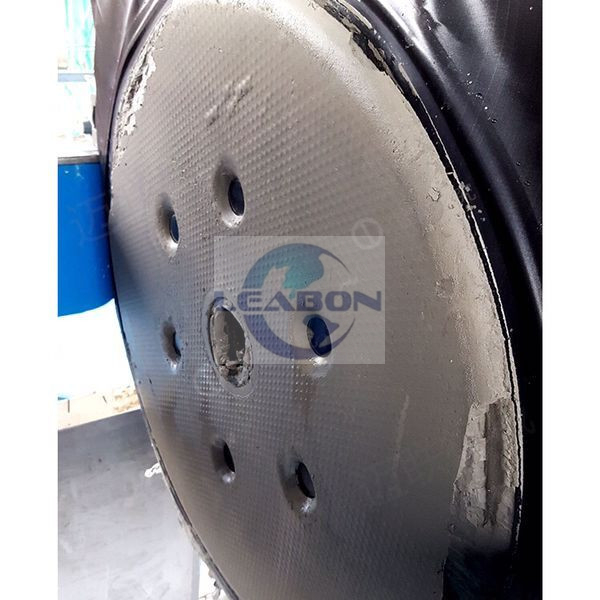

2. The slurry is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers, to separate solid and liquid.

Quantity:
  • XAZM20/φ800-25
  • LEABON

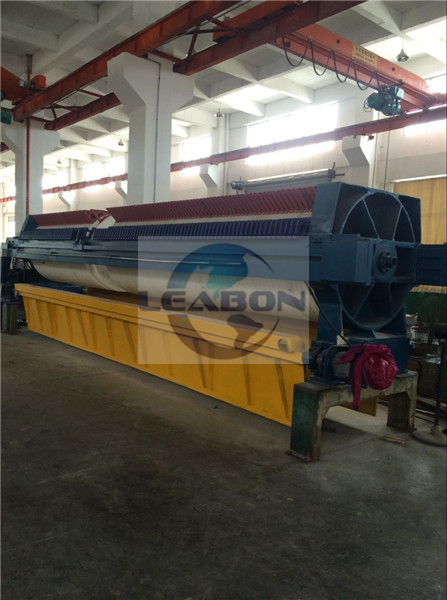

Hydraulic ceramics high-pressure circular chamber filter press

Usages:

Ceramics class: kaolin, superfine glass powder, fire-proof material, silica sand, spray soil grain, mud, abrasive resistance and meters brick materials, artificial black lead, hydrated lime, mica, aluminum oxide, calcium carbonate.

working principle:

1. Working by oil tank. the piston rod will push the movable seat, pressing filter plates to form sealed chambers. It could prevent the slurry from spurting and leakage when sending the slurry with pressure.



2. The slurry is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers, to separate solid and liquid.

QQ图片20161115112319_副本
Spec Par. Item Filter area Filter plat size Quantity of filter plate Volume of straining chamber Rated filtration pressure Compressed max. displacement Rated pressure of
oil cylinder
Weight

M2 MM PCS L Mpa MM Mpa KG
XAZM20/φ800-25 20 φ800 25 255 2 500 30 4100
XAZM30/φ800-25 30 φ800 37 377


5460
XAZM40/φ800-25 40 φ800 49 499


6820
XAZM50/φ800-25 50 φ800 61 621
600
8210
XAZM60/φ800-25 60 φ800 74 753


9710
XAZM70/φ800-25 70 φ800 86 875


11210
