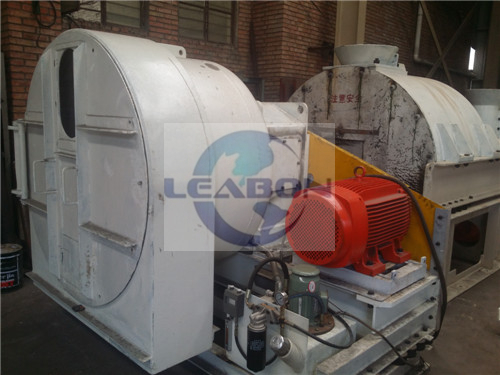

WZ Series Dewatering Horizontal Vibratory Centrifuge

WZ series horizontal vibrating centrifuge belongs to the centrifugal dewatering equipment, the series of horizontal vibrating centrifuge is mainly used for dehydration of fine and medium coal (0.5 to 25mm), it can also be used for other similar materials
Quantity:
Inquire Add to Basket

  • WZ1200

  • LEABON

Application & Features
WZ series horizontal vibrating centrifuge belongs to the centrifugal dewatering equipment, the series of horizontal vibrating centrifuge is mainly used for dehydration of fine and medium coal (0.5 to 25mm), it can also be used for other similar materials dehydration.

Dimension Figure:
Horizontal Vibrating Centrifuge 001
Model meaning
Horizontal Vibrating Centrifuge
Structural  Features ：
The horizontal vibrating centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading.
The WZ series has many advantages, including high production, small crushing degree, long life period of screen, stable, convenient to fix, simple structure, low noise, high reliability and low cost.
Working Principle:
Materials entered into the bottom of the screen basket through a feed-in tube with a enamel and screen base, materials within the screen barrier subjected to centrifugal force and closed to the screen surface. Under the effect of vibration, the material layer moved toward large end of screen basket evenly, the dehydrated material was thrown around the screen basket, falling into a discharge port at the bottom of the shell and discharged. The moisture in the material through the material layer and the sieve seam was thrown around the shell under the action of centrifugal force, then along the shell wall to the drain outlet.

Main Features:
1. High treatment ability, good dehydration effect
2. Small crushing degree, the screen basket is more wearable, long life period
3. TWZ series have inertial resonance vibration system, amplitude and product rate are stable and reliable. The TWZ vibration system has the advantages of smooth running, low noise, simple structure, convenient maintenance and energy saving.

Technical performance：
Basic parameters  Unit Model
WZ850 WZ10A WZ1150 WZ1300 WZ1400 WZ1500
feed size mm ≤50 0-25 0.5-50 0-50 ≤50 0.5-50
processing capacity t/h 30-50 50-100 100-150 180-250 200-300 250-350
product moisture % 5-9
large diameter of screen mm 850 1000 1150 1300 1400 1500
size of screen cut mm 0.25，0.3，.0.35，0.5
vibration frequency Hz 25 255 25 25 25 25
double-amplitude mm 4-6 4-6 4-6 4-6 4-6 4-6
power of main motor Kw 15 22 37.5 45 55 75
power of vibration motor Kw 4 5.5 7.5 7.5 11 15
power of oil pump motor Kw 0.37 0.37 0.55 0.55 0.55 0.55
size length mm 2060 2150 2800 2700 3100 3170
width mm 1510 1875 1930 2260 3090 2975
high mm 1625 1765 1930 2245 2295 2400
Weight Kg 2500 2620 5527 6500 9200

Note: The external moisture of the product is related to the properties of materials, the composition of grain size and the processing capacity, but mainly depends on the content of coal slime. The content of -0.5mm size in materials is less than 10%, the external moisture of the product is general 5%-9%.

Notice：
1. Screen aperture can be supplied according to customer's requirement.
2. Main device supplied in whole set.
3. Spare parts need to place another order.
