XAZY300/1286-30U
LEABON
300
30
42.5
4480
104
105

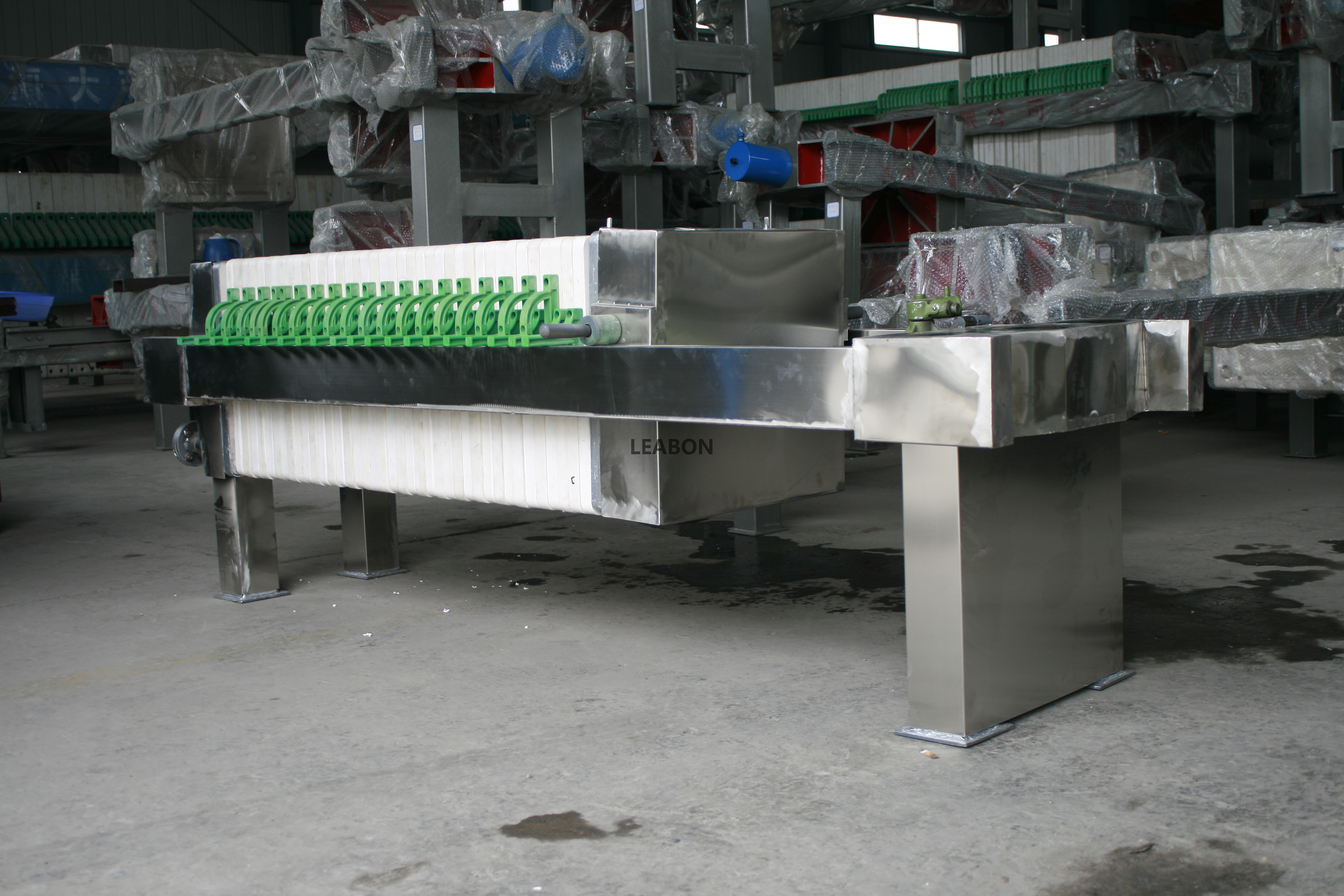

| Model | XAZY300/1286-30U | automatic hydraulic filter press |
| Filter area（M2） | 300 | |
| The thickness of the filter cake（mm） | 30 | |
| A single filter chamber volume（L） | 42.5 | |
| filter chamber volume（L） | 4480 | |
| Filter plate number(pcs) | 104 | Reinforced pp |
| The filter room number(pcs) | 105 | |
| The filter material and characteristics | Plates Material: Reinforced pp Features: Acid, alkali, salt erosion, non-toxic, odorless, light weight, high strength, and effortless operation. Salt solution and polar solvents, good toughness, chemical stability, Plates using cone-shaped point Boss design, molding, with filtering speed, low dehydration cake, washed thoroughly uniform, fine processing of the sealing surface sealing performance intact. | |
| Filter plate size（mm） | 1286x1286x65 | |
| Filter plate material | Reinforced pp | Resistance to acid and alkali |
| Filter cloth material | Resistance to strong acid | |
| Number of filter cloth（pcs） | 104+1 | Including sealing sheet |
| Support beams | Q235 steel welding parts (thicker rectangular tube) | |
| Keep plate | Q235 solid steel plate welded pieces | |
| The thrust plate | Q235 solid steel plate welded pieces | |
| Pressure head | Q235 solid steel plate welded pieces | |
| Oil cylinder | 20 steel welding | |
| Hydraulic station | Q235B steel welded | |
| Filter control cabinet | Carbon paint | |
| Electrical control cabinet | Intelligent control panel Relay control | |
| Filtration temperature | 90≤ | |
| Filter pressure(Mpa) | 0.5-1.6 | |
| Feeding way | The thrust plate feeding in the middle | |
| Drainage way | Undercurrent | According to customer’s requirement |
| Hydraulic station valve group | Hydraulic valve group | |
| The oil pump of the hydraulic pressure station | Plunger pump | |
| Oil pump seat | casting | |
| Power station(kw) | 4 | |
| Oil cylinder pressure（Mpa） | 22 | |
| Oil cylinder maximum effective schedule(mm) | 700 | |
| Compact form | Hydraulic automatic packing, manual unloading | The filter cake was dropped by its own weight |
| The whole machine size（mm） | 10030×2200×2050 | |
| Weight（Kg） | 13500 | |
| The paint coating standard | All steel pretreated to remove the oxide layer rolling, rust and foreign matter, the inner surface coated with epoxy paint, do strength corrosion, the outer surface again primer, epoxy anti-corrosion coating twice. | |
| Manufacturing standards | JB/T4333.2-2005 | |
| Named | The performance parameters | |
| rack | 1. Function：carrying the filter plate, providing top tight pressure, under a certain pressure to ensure the seal and achieve filtration purposes 2, consists of: Pressing plate, thrust plate machine feet, and the feet of the cylinder block, cylinder system, the main beam (thick rectangular tube) 3. Rack material: Coated 304 stainless steel | |
| Filter plate | 1, function: Install the filter media to ensure normal filtration under pressure, can be fully realized backwash 2. Filter plate material: Food Grade Reinforced Polypropylene 3. Handle material: Reinforced polypropylene and wear-resistant plastic | |
| The hydraulic system | 1, function: to provide clamping force, clamping cylinder return and ensure the normal operation of the robot 2, consists of: tank, pump systems, manifold, hydraulic valves, tubing, pressure display and transmission systems 3. Maximum hydraulic pressure: 30MPa; rated pressure: 20MPa. | |
| PS | Manufacturing Standards: JB / T4333-2005 "Van filter and frame filter technology" Quality assurance: product safety in line with European CE certification and the German DIN standard. Quality assurance system in line with ISO9001: 2008 standard Environmental System certified to meet: ISO14001: 2004 standard | |
