High-Efficiency hydraulic Circular Filter Press for Sludge
You are here: Home » Products » Circular Filter Press » High-Efficiency hydraulic Circular Filter Press for Sludge

loading

Share to:
sharethis sharing button

High-Efficiency hydraulic Circular Filter Press for Sludge

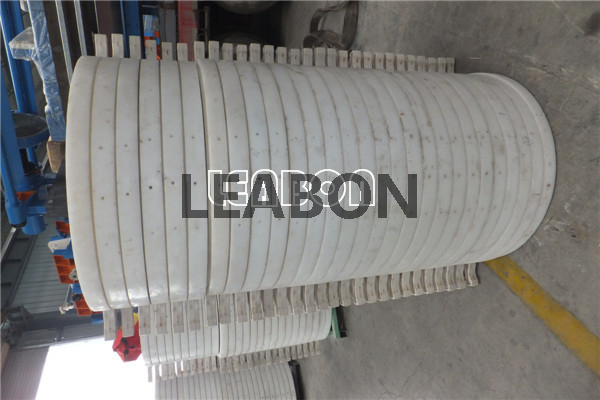

1. pp filter plate
2. simple in operation, and easy to maintain.
3. electrical panel controlled hydraulic pressing.
4. Filter area: 20M2-80M2
5. filtration pressure: 1MPa-2.5MPa
6. plate thickness:800mm
7. cake thickness:25mm
8. hydraulic closure
9. automatic shifting plate
10. temperature: 20-80℃
Quantity:
Inquire Add to Basket

  • XAM20/φ800-25

  • LEABON

  • New

  • 20 m2

  • φ800

  • 25

  • 255

  • 4100kg

Detailed Product Description ：
1 .  pp filter plate
2. simple in operation, and easy to maint ai n .
3. electrical panel controlled hydraulic pressing .
4. Filter area: 20M 2 -80M 2
5. filtration pressure: 1MPa-2.5MPa
6.  plate thickness:800mm
7.  cake thickness:25mm
8 .  hydraulic closure
9 .  automatic shifting plate
10 .  temperature:  20-80 ℃
ceramic clay circular plate filter press 2
ceramic clay circular plate filter press 1_副本
Spec Par. Item Filter area Filter plat size Quantity of filter plate Volume of straining chamber Rated filtration pressure Compressed max. displacement Rated pressure of
oil cylinder		 Weight
M2 MM PCS L Mpa MM Mpa KG
XAM20/φ800-25 20 φ800 25 255 2 500 30 4100
XAM30/φ800-25 30 φ800 37 377 5460
XAM40/φ800-25 40 φ800 49 499 6820
XAM50/φ800-25 50 φ800 61 621 600 8210
XAM60/φ800-25 60 φ800 74 753 9710
XAM70/φ800-25 70 φ800 86 875 11210
